E40-S 2D +6,7:1 Kv 3300

319.00€

ELÉCTRICOS

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

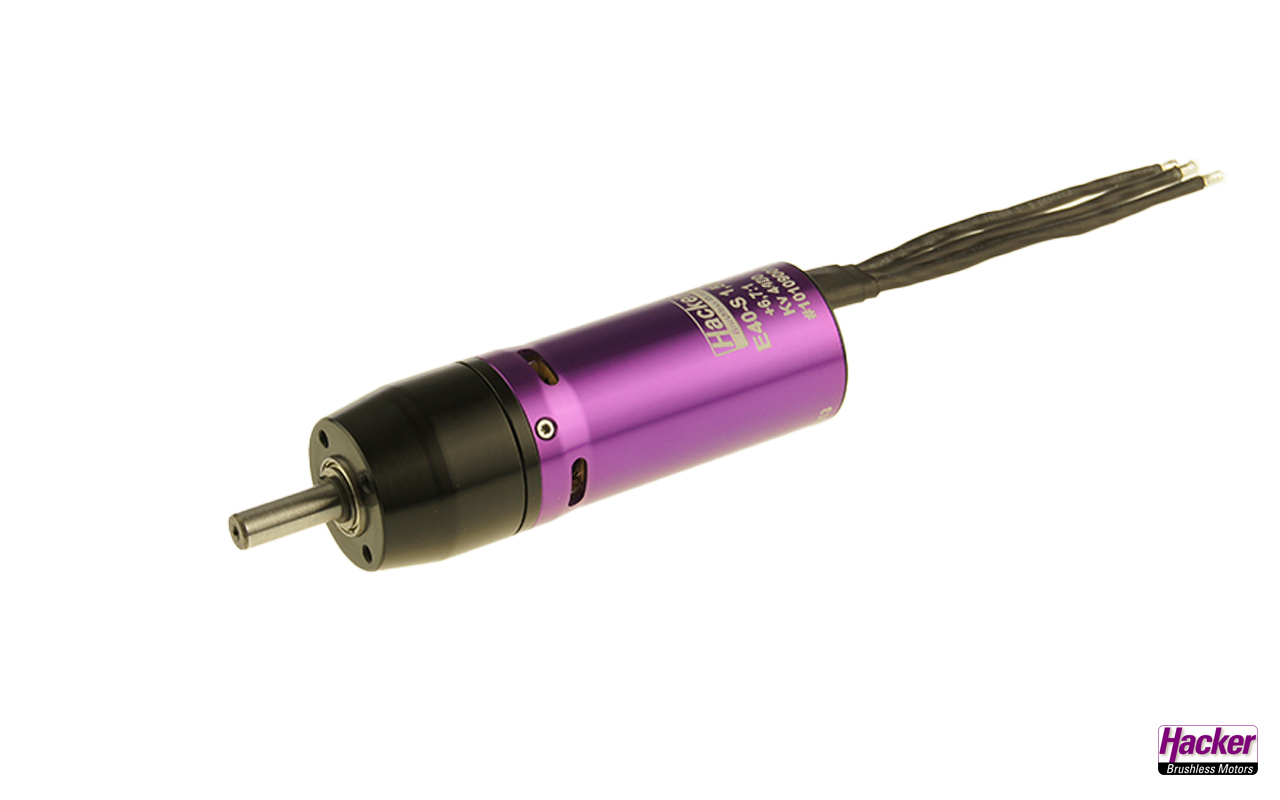

E40-S 2D +6,7:1 Kv 3300

Price 319 plus shipping costs

Compact, light and powerful, this modern gear drive is perfect for F3F/F3J and F5J models, for applications with 4S to 5S LiPo batteries and up to 5 kilograms take-off weight.

Driven by our E4

Technical Data

max. power range [W] (max.15 sec.) 1400
Poles 4
Turns 2D
Idle current (I0) at 8.4V [A] 2,99
Internal resistance (Ri) [Ohm] 0,010
Gear reducing 6,7:1
RPM max. 10000
Recommended timing [°] 10-15
Controller recommendation [A] (depending on setup) 60-100
Idle speed per volt (kv) 3300
Weight [g] 208
Length [mm]/[in] 85,1
Diameter [mm]/[in] 25
Outer diameter [mm]/[in] 29
Shaft diameter [mm]/[in] 6

Este produto foi introduzido em Terça 18 Julho, 2023.
