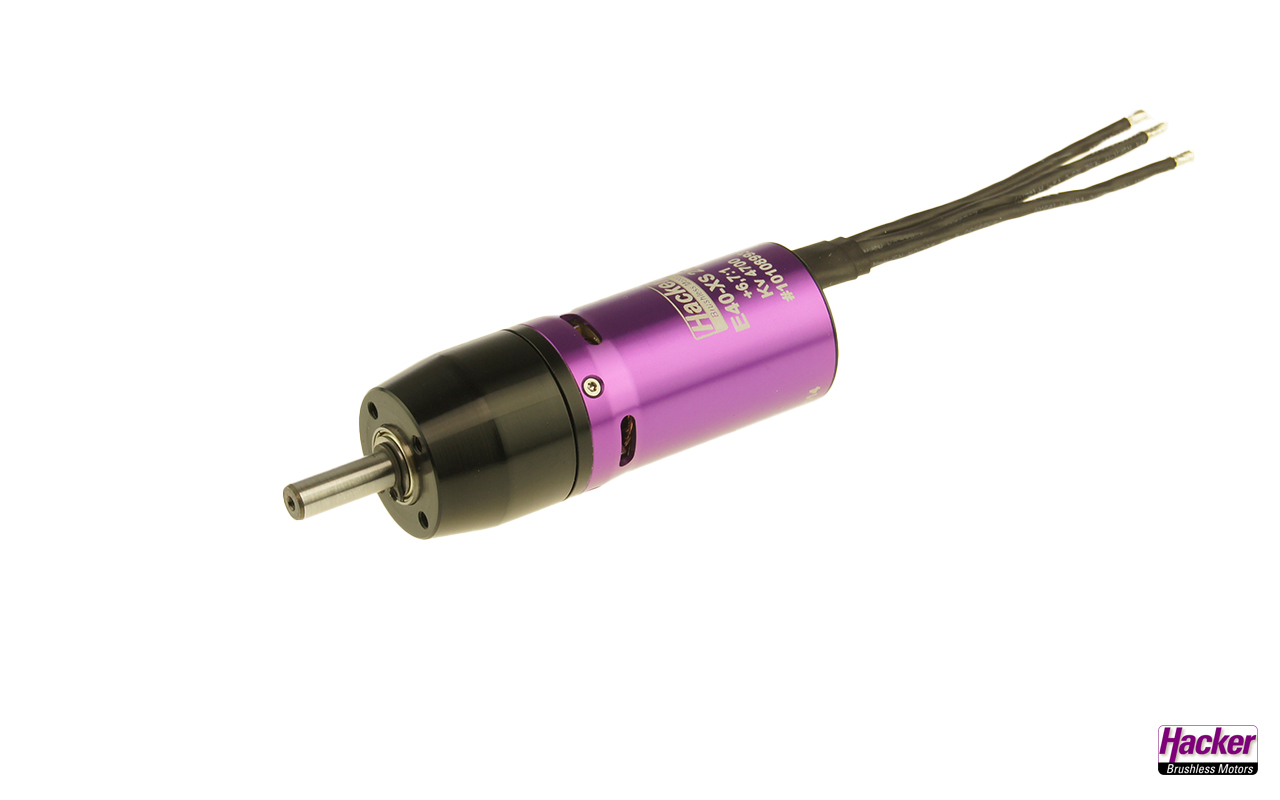

E40-XS 2,5D +6,7:1 Kv 3950

299.00€

ELÉCTRICOS

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

E40-XS 2,5D +6,7:1 Kv 3950

Price 299 plus shipping costs

Compact, light and powerful, this modern gear drive is perfect for F3F/F3J and F5J models, for applications with 3S to 4S LiPo batteries and up to 5 kilograms take-off weight.

Driven by our

Technical Data

max. power range [W] (max.15 sec.) 1100
Poles 4
Turns 2,5D
Idle current (I0) at 8.4V [A] 2,6
Internal resistance (Ri) [Ohm] 0,012
Gear reducing 6.7:1
RPM max. 10000
Recommended timing [°] 10-15
Controller recommendation [A] (depending on setup) 50-80A
Idle speed per volt (kv) 3950
Weight [g] 176
Length [mm]/[in] 75,1
Diameter [mm]/[in] 25
Outer diameter [mm]/[in] 29
Shaft diameter [mm]/[in] 6
