DUPLEX 2.4EX MFlow2 Gas 800
224.90€
RECETORES JETI
JETI
Clique para ampliar
Informação:
Opinião:
Dê a sua opinião

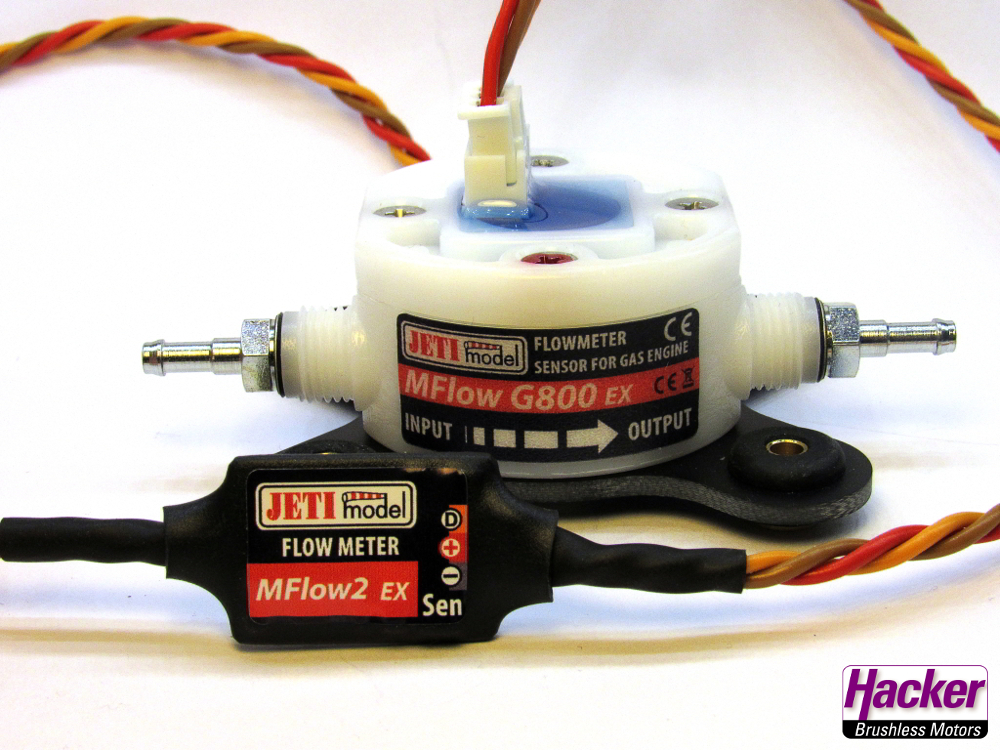

MFlow2-G800 for models with gasoline motors
This telemetry sensor measures the flow of gasoline from the tank to the turbine and can thus display the tank level reliably.
The MFlow2-Gas is suitable for models with gasoline motor drive.
Features
The sensor is compatible with the EX-BUS system
configuration with the device manager of the JETI DC/DS Tx
reset switch at the DC/DS Tx possible
EX telemetry values: Actual flow, and tank level
Adjustable parameters by the user, such as Tank volume, alarm at minimum level
Firmware update via Jeti USBa
Technical Data
Measuring range [ml / min]: 20-800
Measuring tolerance [%]: ± 2
Hose connection [mm]: 2x 4mm
Dimensions [mm]: 77x41x30
Weight [g]: 40
Voltage range [V]: 5-8.4
Operating Temperature [° C]: -20 to 80
Características
O sensor é compatível com o sistema EX-BUS
configuração com o gerenciador de dispositivos do JETI DC/DS Tx
interruptor de reinicialização no DC/DS Tx possível
Valores de telemetria EX: fluxo real e nível do tanque
Parâmetros ajustáveis pelo usuário, como volume do tanque, alarme em nível mínimo
Atualização de firmware via Jeti USBa
Dados técnicos
Faixa de medição [ml/min]: 20-800
Tolerância de medição [%]: ± 2
Conexão da mangueira [mm]: 2x 4mm
Dimensões [mm]: 77x41x30
Peso [g]: 40
Faixa de tensão [V]: 5-8,4
Temperatura operacional [° C]: -20 a 80
Este produto foi introduzido em Segunda 17 Julho, 2023.
