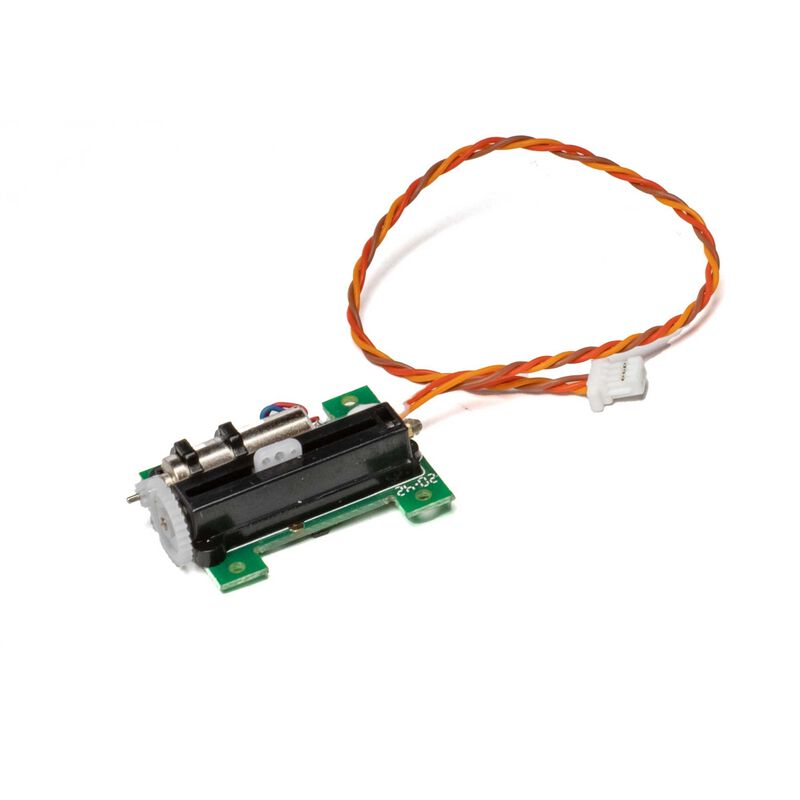

2.9g Linear Long Throw Servo

22.99€

servos spektrum

Clique para ampliar

Informação:

Opinião:

Dê a sua opinião

2.9g Linear Long Throw Servo

Features

Performance linear long throw servo designed specifically for use with AS3X ultra micro heli's
13.5 mm servo throw
Compact footprint
JST-SHR Connector
Single Bearing for friction free operation

Technical Data

Bearing Single
Bushing Or Bearing Bearing
Gear Type Nylon
Maximum Servo Speed 0.100-0.149 sec
Connector Type JST-SHR
Product Length 0.90" (24.0mm)
Maximum Servo Torque 11.6 oz (329 g) @ 4.2V
Servo Operating Voltage 3.2 - 4.2V
Max Servo Torque Less than 20 oz-in
Product Weight 0.10 oz (290 g)
Connector Wire Length 115mm
Product Width 0.70" (19.0mm)
Programmable Yes
Servo Size Category Ultra-Micro
Product Height 0.40" (9.00mm)
Servo Type Analog
